An as-built survey records exactly where new equipment landed after installation, which matters most inside a working plant. When a manufacturing site adds tanks, equipment pads, or process lines, the crew measures the finished conditions and checks them against the approved plans. That comparison catches the small shifts that happen during construction before they turn into expensive fits later. It also builds a reliable record the facility can use for years.

Capturing Real Conditions Around Live Production

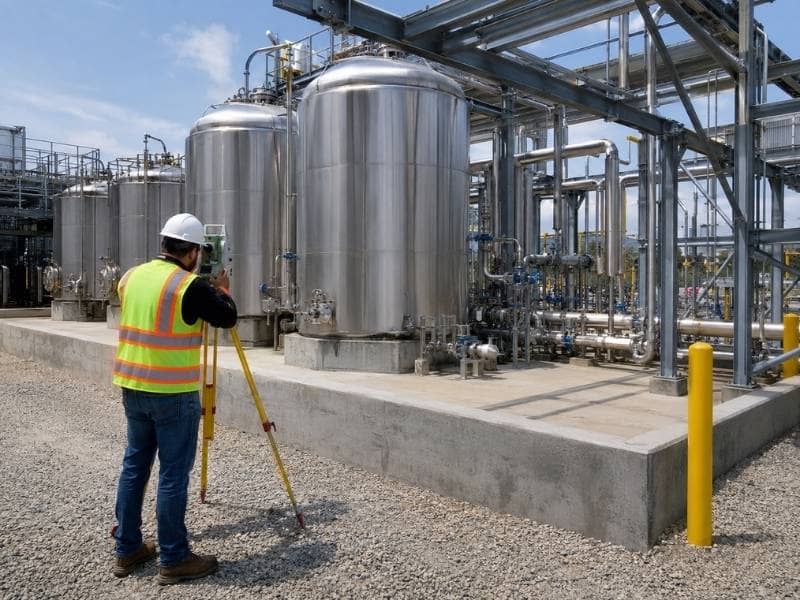

The first challenge is measuring accurate positions while production keeps running. Crews record completed tanks, pads, pipe supports, containment features, and nearby structures, all while working around active equipment and restricted zones. Timing and coordination shape everything, because a plant rarely stops so a survey can happen. So the field team plans routes and methods that fit the operation instead of interrupting it.

Precision still has to hold under those conditions. A tank that sits two inches off can throw a connecting line out of tolerance. The survey pins the real location so engineers work from fact, not from the drawing that was supposed to be true.

Checking Field Placement Against the Plan

The heart of the survey is a side-by-side check of built position versus designed position. Surveyors compare measured coordinates and elevations against approved layouts and engineering points to find any difference that matters. Small gaps between plan and reality show up here, before they cause a clash during the next phase. When a pad drifts from its designed spot, the team learns early enough to adjust.

This step protects the whole installation sequence. A confirmed position lets a fabricator cut pipe with confidence. A flagged deviation gives the engineer time to redesign a connection instead of forcing one on site.

Recording the Connections That Tie Systems Together

Beyond individual pieces, the survey documents how systems meet. Tie-in points, pipe penetrations, slab edges, anchor locations, and equipment clearances all affect how the next contractor works. When these connections sit accurately on the drawing, installation and future maintenance both go smoother. A missed clearance often surfaces at the worst possible moment, so mapping it early saves real trouble.

These interfaces are where projects tend to bind up. A penetration an inch off can stall a whole tie-in. The as-built captures the truth of each junction so the crew that follows isn’t surprised.

Working Safely Inside an Industrial Site

Safety drives how the crew moves through an active plant. Site orientation, escorts, protective equipment, shutdown windows, and restricted areas all shape when and where measurements happen. Clear communication with plant staff keeps the survey on schedule without putting anyone at risk. A crew that respects these rules earns the access it needs to finish well.

Because industrial hazards are real, the survey plan treats them as part of the job, not an afterthought. That mindset protects the workers and the timeline at the same time.

Delivering Data for Closeout and Long-Term Use

The finished drawings and digital data serve the plant well past the current project. Engineers use them for review, facility managers use them for maintenance planning, and future teams use them for expansion studies. Because the record reflects real conditions, everyone downstream works from something they can trust. A clean as-built package turns a one-time survey into a lasting asset for the facility.
